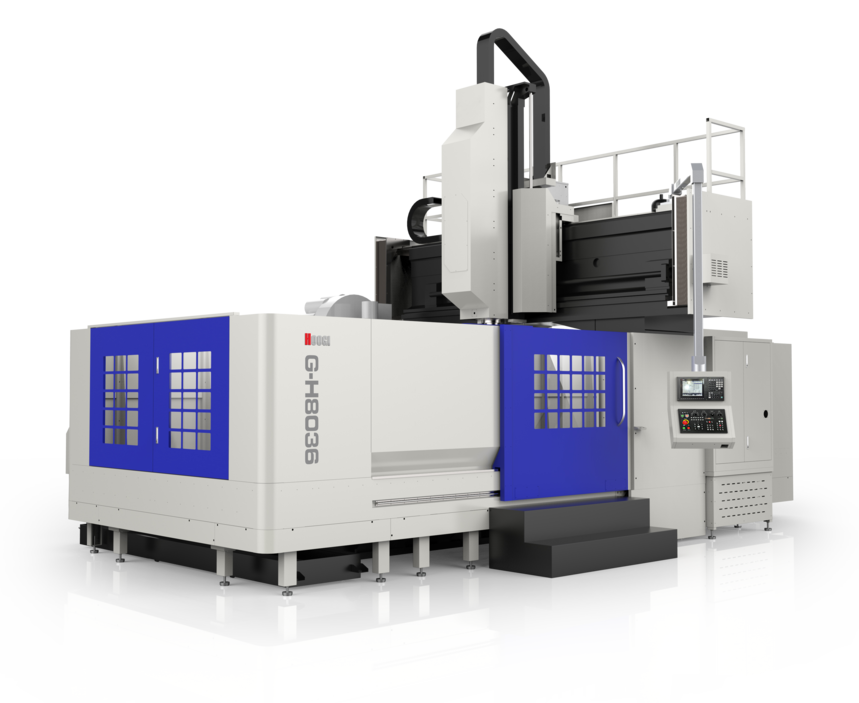

G-H8036

文章内容


Product parameters

Application areas

This machine tool is suitable for batch processing of complex parts such as medium and large-sized box-shaped, plate-shaped, disc-shaped, valve-shaped, shell-shaped, and mold-shaped parts.

Machine parameters

CNC configuration	Name	Unit	G-H8036
Travel	X/Y/Z travel	mm	8500/4200/1300
	Workbench area	mm	8000×3000
	Gantry width	mm	3600
	Distance from spindle nose to worktable	mm	160-1460
Workbench	T-slot	No.	11-28×250
Workbench	Max. load	kg	35000
Spindle	Spindle specification		BT50
	Spindle speed	rpm	6000
	Connection method		Belt drive
Feed speed	Fast movement X/Y/Z	m/min	10/10/10
Servo axis	Lead screw X/Y/Z	mm	10040/8020/6316
Servo axis	Linear guideway X/Y/Z	mm	X：553 Y: 552 Z：Rectangular slide rail
Precision	Positioning accuracy X/Y/Z	mm	0.035/0.025/0.012
Precision	Repeatability X/Y/Z	mm	0.025/0.015/0.010
Tool magazine	Tool magazine capacity		BT50-24T
	Tool magazine type		Disc
	Max. diameter of tool	mm	110/220
