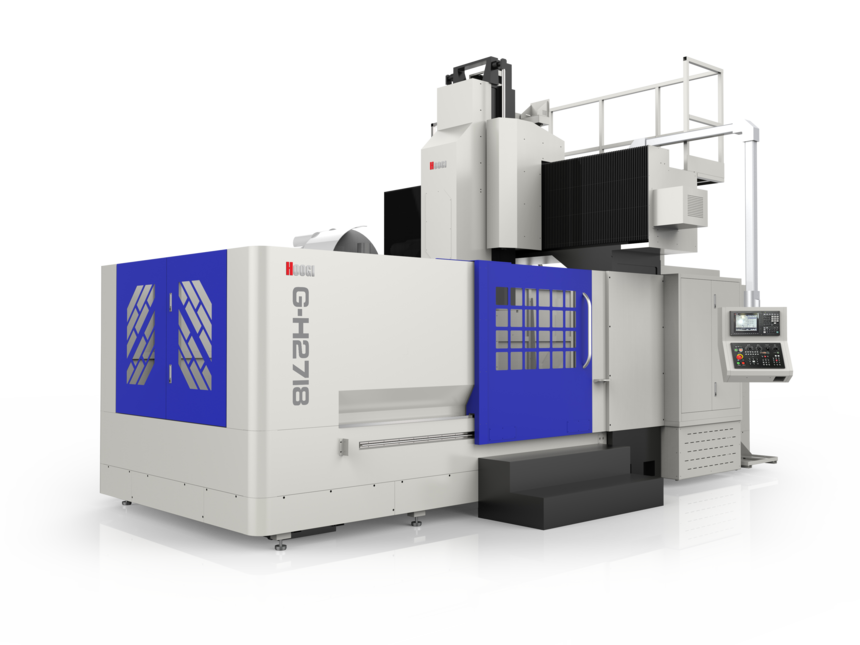

G-H2718

文章内容


Product parameters

Application areas

This machine tool is suitable for batch processing of complex parts such as medium and large-sized box-shaped, plate-shaped, disc-shaped, valve-shaped, shell-shaped, and mold-shaped parts.

Machine parameters

CNC configuration	Name	Unit	G-H2718
Travel	X/Y/Z travel	mm	2700/2100/1000
	Workbench area	mm	2700×1600
	Gantry width	mm	1800
	Distance from spindle nose to worktable	mm	70-1070
Workbench	T-slot	No.	7-22×200
Workbench	Max. load	kg	6500
Spindle	Spindle specification		BT50/φ190
	Spindle speed	rpm	6000
	Connection method		Belt drive
Feed speed	Fast movement X/Y/Z	m/min	10/10/10
Servo axis	Lead screw X/Y/Z	mm	6316/6310/5010
Servo axis	Linear guideway X/Y/Z	mm	X：45/10 Y：55/5 Z：Rectangular slide rail
Precision	Positioning accuracy X/Y/Z	mm	0.025/0.015/0.012
Precision	Repeatability X/Y/Z	mm	0.015/0.012/0.010
Tool magazine	Tool magazine capacity		BT50-24T
	Tool magazine type		Disc
	Max. diameter of tool	mm	110/220
Machine dimension	Machine dimension	mm	750046004700

Note: Due to technological research and optimization, the company reserves the right to design and modify the technology.
