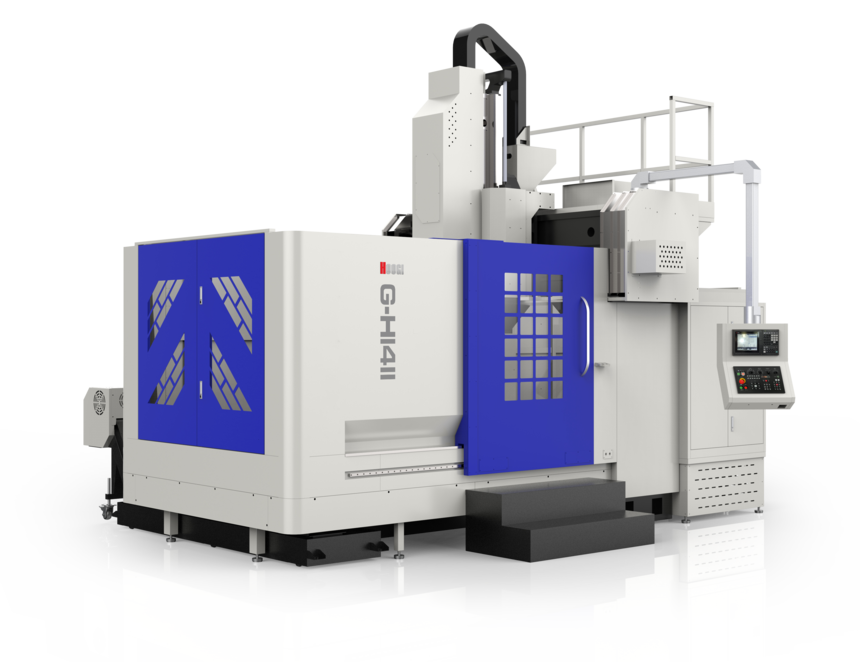

G-H1411

文章内容


Product parameters

Application areas

This machine tool is suitable for batch processing of complex parts such as medium and large-sized box-shaped, plate-shaped, disc-shaped, valve-shaped, shell-shaped, and mold-shaped parts.

Machine parameters

CNC configuration	Name	Unit	G-H1411
Travel	X/Y/Z travel	mm	1200/1100/800
	Workbench area	mm	1400×900
	Gantry width	mm	1100
	Distance from spindle nose to worktable	mm	140-940
Workbench	T-slot	No.	7-22×125
Workbench	Max. load	kg	1600
Spindle	Spindle specification		BT50/φ155
	Spindle speed	rpm	8000
	Connection method		Belt drive
Feed speed	Fast movement X/Y/Z	m/min	12/12/12
Servo axis	Lead screw X/Y/Z	mm	5010/5010/5010
Servo axis	Linear guideway X/Y/Z	mm	X：45/6 Y：45/4 Z：Rectangular slide rail
Precision	Positioning accuracy X/Y/Z	mm	0.015/0.015/0.012
Precision	Repeatability X/Y/Z	mm	0.012/0.012/0.010
Tool magazine	Tool magazine capacity		BT50-24T
	Tool magazine type		Disc
	Max. diameter of tool	mm	110/220
Machine dimension	Machine dimension	mm	480042004500

Note: Due to technological research and optimization, the company reserves the right to design and modify the technology.
