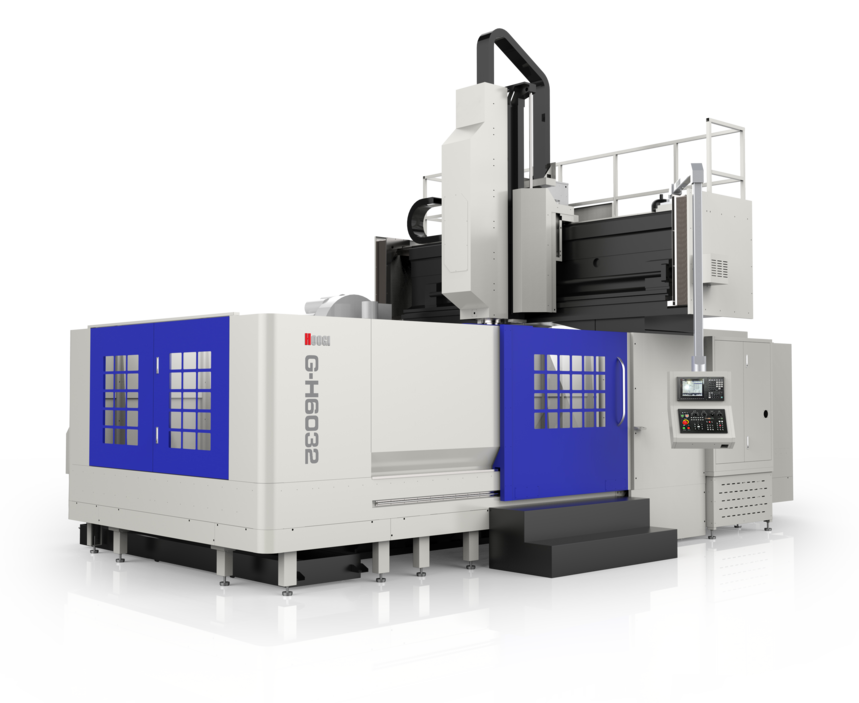

G-H6032

文章内容


Product parameters

Application areas

This machine tool is suitable for batch processing of complex parts such as medium and large-sized box-shaped, plate-shaped, disc-shaped, valve-shaped, shell-shaped, and mold-shaped parts.

Machine parameters

CNC configuration	Name	Unit	G-H6032
Travel	X/Y/Z travel	mm	6200/3300/1000
	Workbench area	mm	6000×2700
	Gantry width	mm	3200
	Distance from spindle nose to worktable	mm	250-1250
Workbench	T-slot	No.	11-28×250
Workbench	Max. load	kg	30000
Spindle	Spindle specification		BT50
	Spindle speed	rpm	6000
	Connection method		Belt drive
Feed speed	Fast movement X/Y/Z	m/min	6/10/12
Servo axis	Lead screw X/Y/Z	mm	10020/6316/5010
Servo axis	Linear guideway X/Y/Z	mm	XY：45*3 Z：Rectangular slide rail
Precision	Positioning accuracy X/Y/Z	mm	0.035/0.025/0.012
Precision	Repeatability X/Y/Z	mm	0.025/0.015/0.010
Tool magazine	Tool magazine capacity		BT50-24T
	Tool magazine type		Disc
	Max. diameter of tool	mm	110/220
