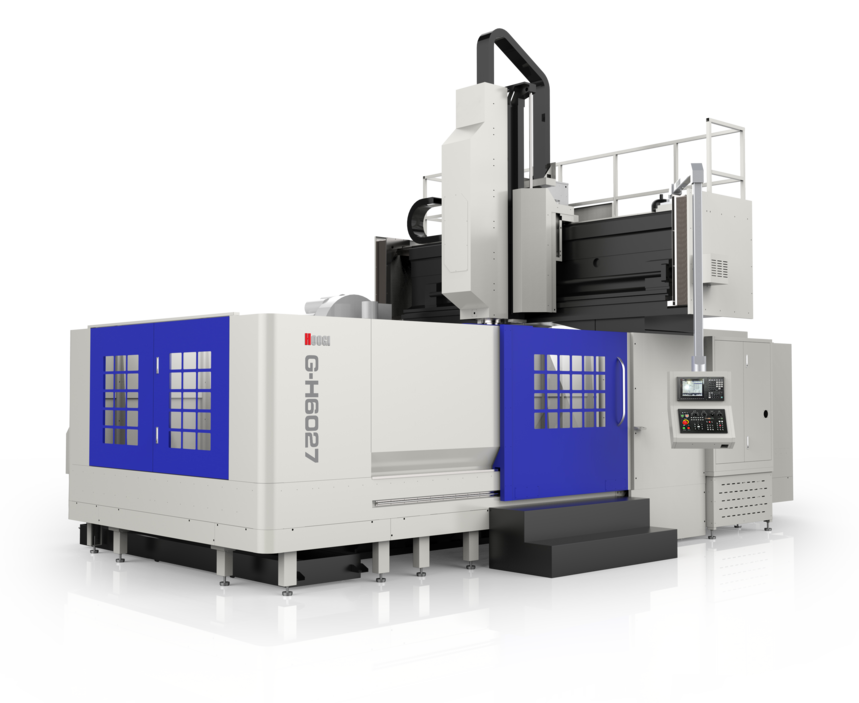

Application areas
This machine tool is suitable for batch processing of complex parts such as medium and large-sized box-shaped, plate-shaped, disc-shaped, valve-shaped, shell-shaped, and mold-shaped parts.
Machine parameters
CNC configuration | Name | Unit | G-H6027 |
Travel | X/Y/Z travel | mm | 6200/3000/1000 |
Workbench area | mm | 6000¡Á2500 |
Gantry width | mm | 2700 |
Distance from spindle nose to worktable | mm | 250-1250 |
Workbench | T-slot | No. | 9-28¡Á250 |
Max. load | kg | 27000 |
Spindle | Spindle specification |
| BT50 |
Spindle speed | rpm | 6000 |
Connection method |
| Belt drive |
Feed speed | Fast movement X/Y/Z | m/min | 6/10/12 |
Servo axis | Lead screw X/Y/Z | mm | 10020/6316/5010 |
Linear guideway X/Y/Z | mm | XY£ºroller 45*2 +ball 45*1 Z£ºRectangular slide rail |
Precision | Positioning accuracy X/Y/Z | mm | 0.035/0.025/0.012 |
Repeatability X/Y/Z | mm | 0.025/0.015/0.010 |
Tool magazine | Tool magazine capacity |
| BT50-24T |
Tool magazine type |
| Disc |
Max. diameter of tool | mm | 110/220 |
Machine dimension | Machine dimension | mm | 17000*6000*5300 |
