Machine tools are used in automobile manufacturing, aerospace, medical devices, rail transportation, ship parts, complex handicrafts, new energy, wind power and other fields.

Product features

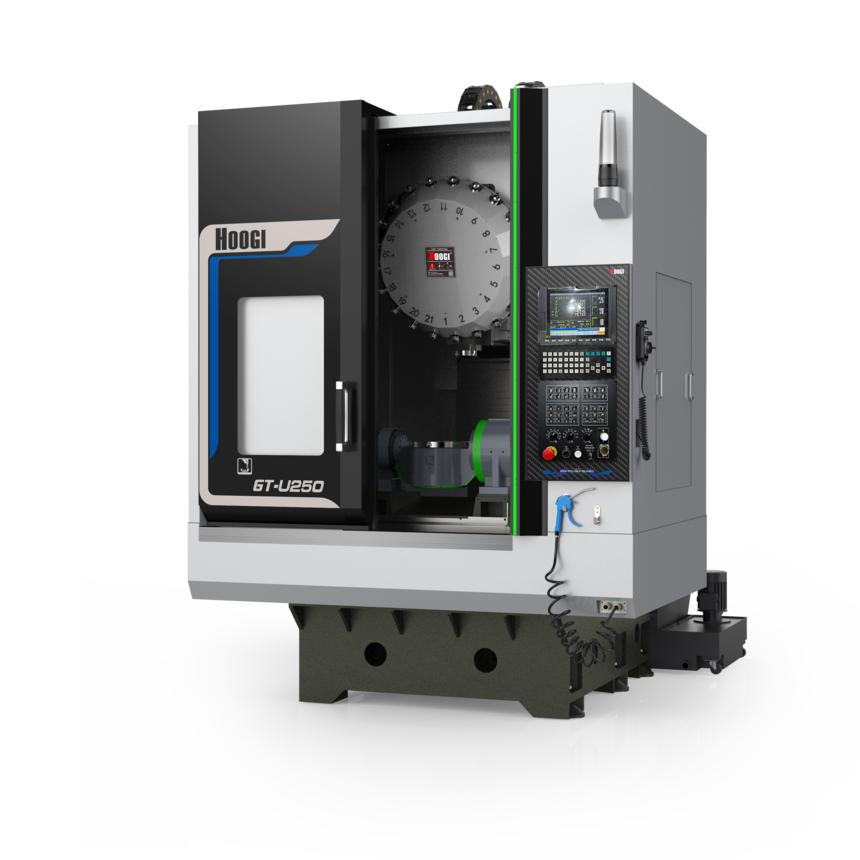

1. Equipped with a torque motor cradle five-axis machining center and a five-axis control system, enabling high-precision five-axis machining of complex curved surfaces.

2. The five-axis rotary table support and X-axis slide are designed as a single unit, resulting in greater machine tool rigidity and higher precision.

3. Utilizing a DD direct-drive rotary table, it boasts high positioning accuracy and repeatability, making it suitable for batch processing of complex parts.

Machine parameters

CNC configuration	Name	Unit	GT-U250
Travel	X/Y/Z travel	mm	400450350
	A/C axis rotation angle	°	±110/0-360
	Workbench area	mm	¢250-320
	Distance from spindle center to column rail surface	mm	500
	Distance from spindle nose to rotary table surface	mm	100-450
Workbench	T-slot	No.	4-12H7
Workbench	Max. load	kg	Horizontal 50/Vertical 35
Spindle	Spindle specification		BBT30
	Spindle speed	rpm	20000
	Connection method		Direct drive
Feed speed	Fast movement X/Y/Z	m/min	36/36/36
Servo axis	Lead screw X/Y/Z	mm	2812/2812/3212
Servo axis	Guide railX/Y/Z	mm	30/30/35
Precision	Positioning accuracy X/Y/Z	mm	±0.005/300
Precision	Repeatability X/Y/Z	mm	±0.003/300
Tool magazine	Tool magazine capacity		BT30-21T
	Tool magazine type		Swashplate
	Max. diameter of the cutting tool	mm	100
Machine dimension	Machine dimension	mm	185025852800
