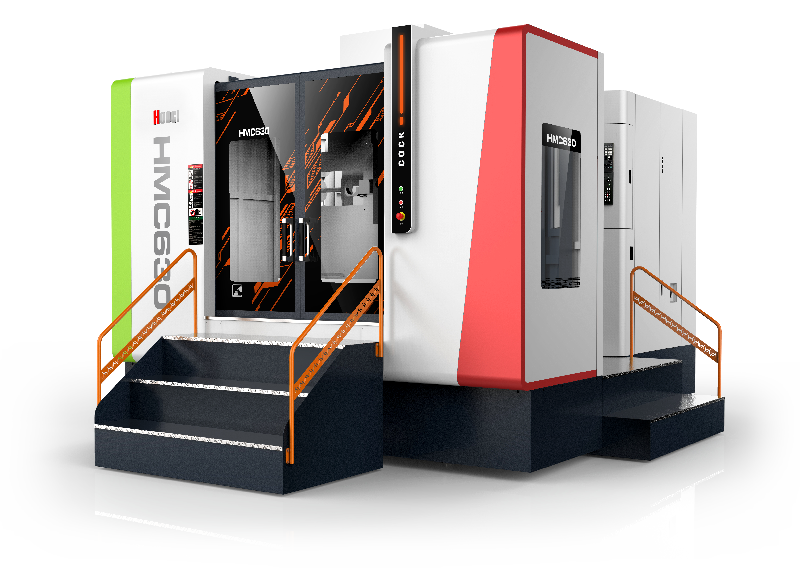

HMC630

文章内容


Product parameters

Machine parameters

CNC Configuration

Name

Unit

HMC630

Travel

X/Y/Z travel

mm

1100/750/950

Worktable dimension

mm

630×630

Distance from spindle end face to table center

mm

130—1080

Distance from spindle center to worktable surface

mm

130—880

Workbench

T-slot

No.

5-18

Maximum load

kg

1200

Workbench gradation     deg            1°
Max. rotation diameter of workpiece on the worktable     mm            1500

Spindle

Spindle specification


BT50

Spindle speed

rpm

6000

 Spindle connection method


Belt drive

Feed rate

Fast movement X/Y/Z

m/min

24/24/24

Servo axis

Lead screwX/Y/Z

mm

4012/4012/5010

Linear guidewayX/Y/Z

mm

45/45/55

Machine precision

Positioning accuracy X/Y/Z

mm

0.008

Repeatability X/Y/Z

mm

0.005

Tool magazine

Tool magazine capacity


BT50-24T

Tool magazine type


Disc

Maximum diameter of the cutting tool

mm

110/220

Machine dimension

Machine dimension

mm

                     5050X3550X3200
