3. The super-large and heavy base design features an internal hidden leg support, a low center of gravity, excellent shock absorption performance, and outstanding rigidity and stability.

4. The adoption of a 8000-rpm belt-driven spindle ensures excellent heavy cutting performance.

Machine parameters

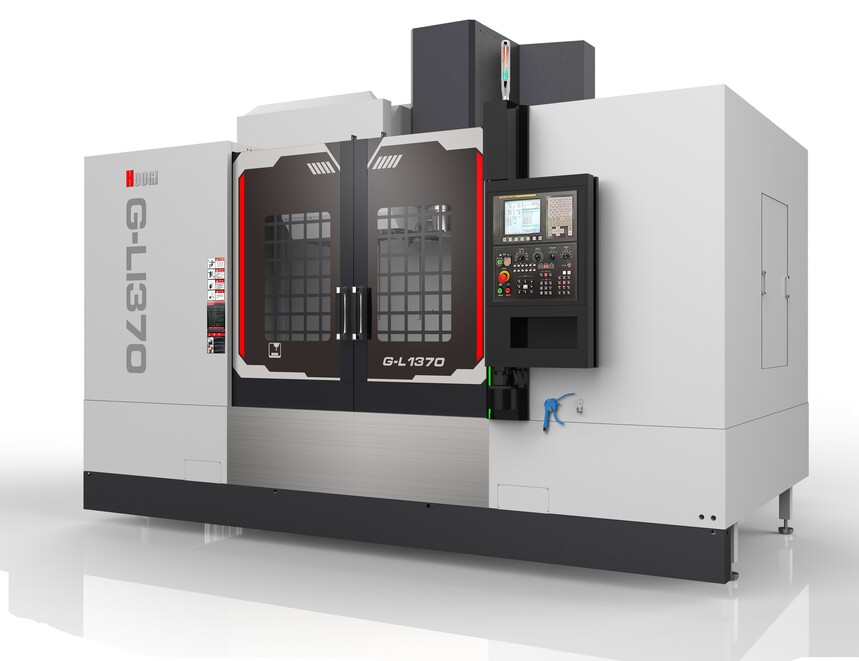

CNC Configuration	Name	Unit	G-L1370
Travel	X/Y/Z travel	mm	1300/700/680
	Workbench area	mm	1400×700
	Distance from spindle center to column rail surface	mm	750
	Distance from spindle nose to worktable	mm	120-800
Workbench	T-slot	No.	5-18
Workbench	Max. load	kg	800
Spindle	Spindle specification		BT40
	Spindle speed	rpm	8000
	Spindle connection method		Belt drive
Feed speed	Fast movement X/Y/Z	m/min	24/24/16
Servo axis	Lead screwX/Y/Z	mm	5010/4012/4012
Servo axis	Guide railX/Y/Z	mm	X/Y: 45/45 Z:Box guide rail
Precision	Positioning accuracy X/Y/Z	mm	±0.005/300
Precision	Repeatability X/Y/Z	mm	±0.003/300
Tool magazine	Tool magazine capacity		BT50-24T
	Tool magazine type		Disc
	Max. diameter of the tool	mm	80/150
Machine dimension	Machine dimension	mm	315038003100
