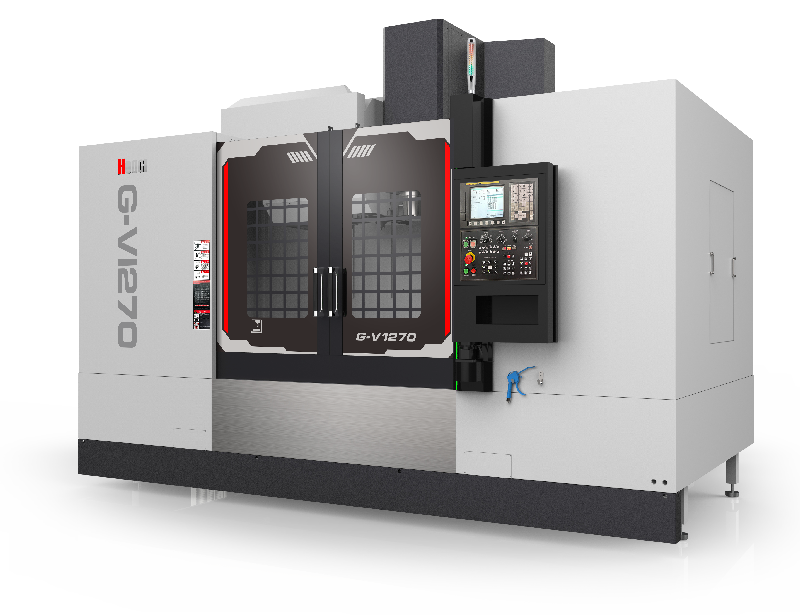

G-V1270

文章内容



Product parameters


Product features

1. Extra-large, heavy-duty base design with concealed feet, low center of gravity, excellent shock absorption, and superb rigidity and stability.

2. Capable of batch processing of large, high-precision workpieces.

3. Faster and more accurate tool change speed.

4. Features stable precision and vibration-free cutting at high speeds without deformation.

Machine parameter

CNC Configuration

Name

Unit

G-V1270

Travel

X/Y/Z travel

mm

1200/700/700

Workbench area

mm

1300×700

Distance from spindle center to column rail surface

mm

750

Distance from spindle nose to worktable

mm

110-810

Workbench

T-slot

No.

5-18

Maximum load

kg

1200

Spindle

Spindle specification


BT40/φ150

Spindle speed

rpm

8000

Spindle connection method


Belt drive

Feed rate

Fast movement X/Y/Z

m/min

24/24/16

Servo axis

Lead screw X/Y/Z

mm

4012-C3

Linear guidewayX/Y/Z

mm

45/35/45

Machine precision

Positioning accuracy X/Y/Z

mm

±0.005/300

Repeatability X/Y/Z

mm

±0.003/300

Tool magazine

Tool magazine capacity


BT40-24T

Tool magazine type


Disc type

Maximum diameter of the cutting tool

mm

80/150

Machine dimension

Machine dimension

mm

3450*3800*3200
