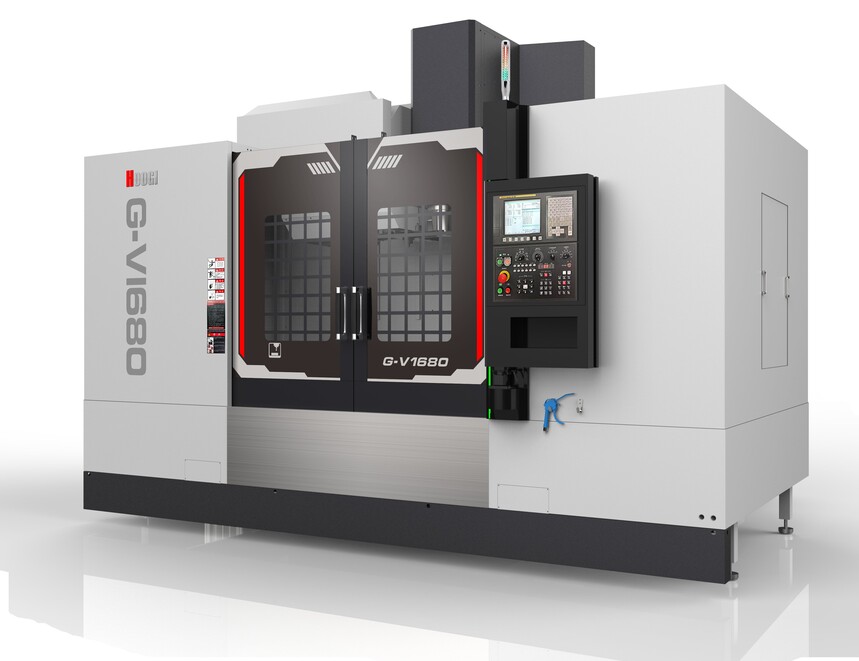

G-V1680

文章内容



Product parameters

Product features

1. Extra-large, heavy-duty base design with concealed feet, low center of gravity, excellent shock absorption, and superb rigidity and stability.

2. Capable of batch processing of large, high-precision workpieces.

3. Faster and more accurate tool change speed.

4. Features stable precision and vibration-free cutting at high speeds without deformation.

Machine parameters

CNC Configuration

Name

Unit

G-V1680

Travel

X/Y/Z travel

mm

1600/800/800

Worktable dimension

mm

1700×810

Distance from spindle center to column rail surface

mm

875

Distance from spindle nose to worktable

mm

85-885

Workbench

T-slot

No.

5-18

Maximum load

kg

1500

Spindle

Spindle specification


BT50/φ155

Spindle speed

rpm

8000

 Spindle connection method


Belt drive

Feed rate

Fast movement X/Y/Z

m/min

24/24/16

Servo axis

Lead screwX/Y/Z

mm

5512/5010/5010

Linear guidewayX/Y/Z

mm

45/45/45

Machine precision

Positioning accuracy X/Y/Z

mm

+0.006/300

Repeatability X/Y/Z

mm

+0.004/300

Tool magazine

Tool magazine capacity


BT50-24T

Tool magazine type


Disc

Maximum diameter of the cutting tool

mm

110/220

Machine dimension

Machine dimension

mm

                     4500*4000*3200
