3. The super-large and heavy base design features an internal hidden leg support, a low center of gravity, excellent shock absorption performance, and outstanding rigidity and stability.

4. The adoption of a 8000-rpm belt-driven spindle ensures excellent heavy cutting performance.

Machine parameters

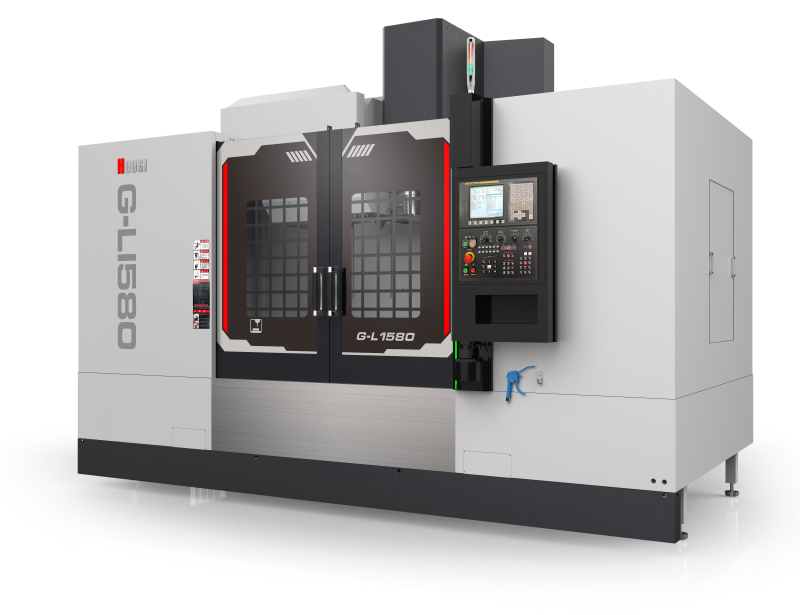

CNC Configuration	Name	Unit	G-L1580
Travel	X/Y/Z travel	mm	1500/800/800
	Workbench area	mm	1700×810
	Distance from spindle center to column rail surface	mm	865
	Distance from spindle nose to worktable	mm	85-885
Workbench	T-slot	No.	5-18
Workbench	Max. load	kg	1500
Spindle	Spindle specification		BT50/φ155
	Spindle speed	rpm	8000
	Spindle connection method		Belt drive
Feed speed	Fast movement X/Y/Z	m/min	24/24/14
Servo axis	Lead screw X/Y/Z	mm	5512/5010/5010
Servo axis	Guide railX/Y/Z	mm	X/Y:45/45 Z:Box guide rail
Precision	Positioning accuracy X/Y/Z	mm	+0.006/300
Precision	Repeatability X/Y/Z	mm	+0.004/300
Tool magazine	Tool magazine capacity		BT50-24T
	Tool magazine type		Disc
	Max. diameter of the tool	mm	110/220
Machine dimension	Machine dimension	mm	450040003200
